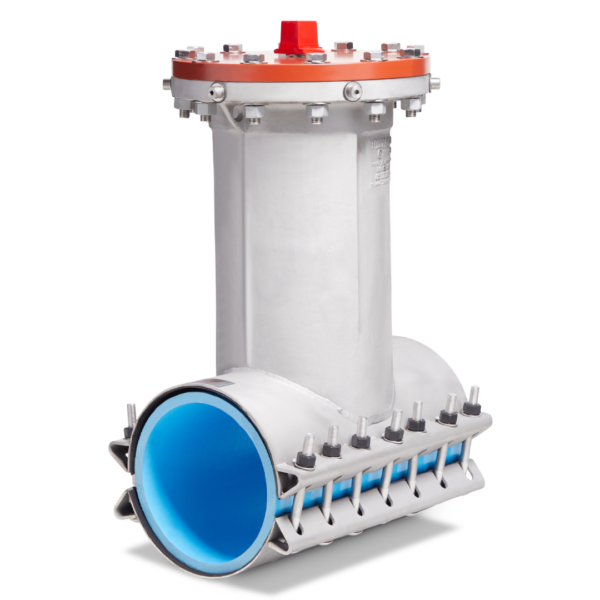

Insta-Valve 250

  • 250 psi working pressure
  • Requires no system shutdown
  • Eliminates 100 percent of the costs related to shutting down a system
  • Engineered valve cartridge for a drip tight seal
  • Exceeds AWWA C509/515 Proof of Design Standards
  • Maintains NSF 61 and ANSI 372 certification by UL
  • Stainless steel construction
  • Permanent asset for site-specific control
  • Can be installed on all common pipe types in any orientation in as little as 2 hours
  • No need to ream or sever the pipe, only a single tap needed for installation

Additional information

Sizes

4", 6", 8", 10", 12"
Add to Cart

How It Works

The installation of the Hydra-Stop Insta-Valve 250 insertion valve is accomplished through a single circular hole — commonly known as a “tap” — cut under full line pressure into the top of the pipe without the need to ream or sever the pipe. By installing the Insta-Valve 250 right where a control point is needed, you gain a permanent asset allowing system control and maintenance in the same manner as a resilient seated gate valve.

Build Your Valve

FAQ

    What sizes are available?

    The Insta-Valve 250 is available in 4″ through 12″ diameters.

    Can the Insta-Valve 250 be installed off-center?

    Yes. The Insta-Valve 250 can be installed in any position on the pipe.

    Does the Insta-Valve 250 work with all common types of pipe?

    Yes. The Insta-Valve 250 can be installed on all common types of pipes, including AC, CI, DI and PVC pipe.

    How many excavations are required to install an Insta-Valve 250?

    Only one small excavation is needed to install the Insta-Valve 250, requiring an excavation size as little 5′ x 5′.

    Does the Insta-Valve 250 install easily?

    Yes. The Insta-Valve 250 can be installed in as little as one hour. Simply mount the Insta-Valve 250 valve body, make a simple tap with your Hydra-Tapper™ and install your Insta-Valve 250 valve cartridge.

    How does the Insta-Valve 250 seal?

    The Insta-Valve 250 seals in three ways: throat gasket, wipe seal and valve paddle. Working together, these seals optimize the sealing characteristics of the Insta-Valve 250, providing the best performance and reliability of any valve insertion technology available today.

    Is the Insta-Valve 250 a permanent valve?

    Yes, the Insta-Valve 250 is a permanent valve designed to provide years of trouble-free operation.
